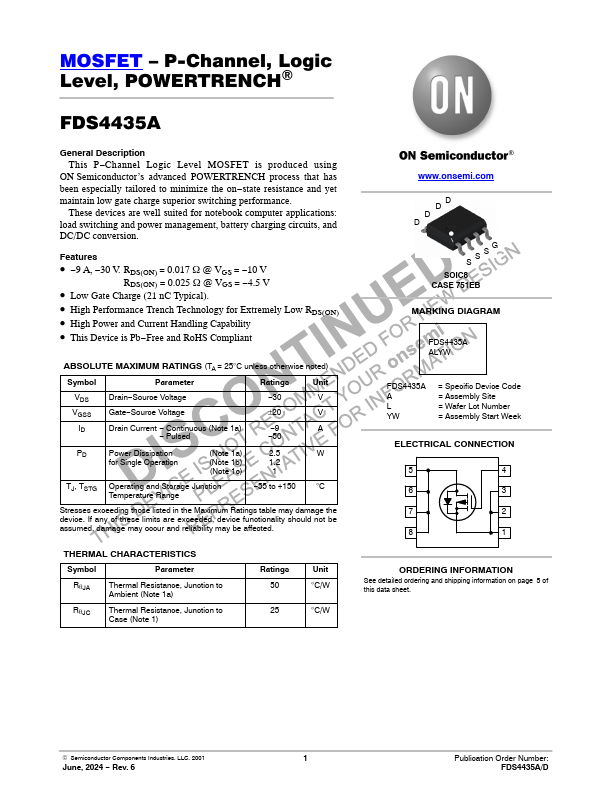

FDS4435A - P-Channel MOSFET

Product Overview

onsemi

Datasheet Details

Part number	FDS4435A
Manufacturer	onsemi
File Size	298.33 KB
Description	P-Channel MOSFET
Datasheet	FDS4435A Datasheet
Additional preview pages of the FDS4435A datasheet.

Product details

Description

This P Channel Logic Level MOSFET is produced using ON Semiconductor’s advanced POWERTRENCH process that has been especially tailored to minimize the on state resistance and yet maintain low gate charge superior switching performance.

Features

9 A,.
30 V. RDS(ON) = 0.017 W @ VGS =.
10 V RDS(ON) = 0.025 W @ VGS =.
4.5 V.
Low Gate Charge (21 nC Typical).
High Performance Trench Technology for Extremely Low RDS(ON).
High Power and Current Handling Capability.
This Device is Pb.
Free and RoHS Compliant.
