FDS9933A Dual P-Channel MOSFET

onsemi

FDS9933A Description

MOSFET * Dual, P-Channel, POWERTRENCH) 2.5 V Specified FDS9933A General .
These P. Channel 2.

FDS9933A Features

* 3.8 A,
* 20 V. RDS(on) = 0.075 W, VGS =
* 4.5 V RDS(on) = 0.105 W, VGS =
* 2.5 V
* Low Gate Charge (7 nC Typical )
* Fast Switching Speed
* High Performance Trench Technology for Extremely Low RDS(on)
* High Power and Current Handling Capability

FDS9933A Applications

* Load Switch
* DC/DC Converters
* Motor Drives ABSOLUTE MAXIMUM RATINGS (TA = 25C unless otherwise noted) Symbol Parameter Value Unit VDSS Drain
* Source Voltage
* 20 V VGSS Gate
* Source Voltage 8 V ID Drain Current Continuous (Note 1a)
* 3.8

📥 Download Datasheet

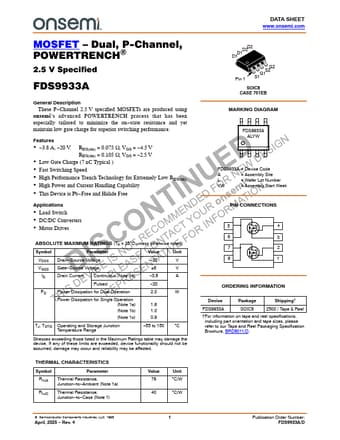

FDS9933A Datasheet Preview — Preview of FDS9933A PDF

Datasheet Details

Part number: FDS9933A
Manufacturer: onsemi
File Size: 274.60 KB
Datasheet: FDS9933A-onsemi.pdf
Description: Dual P-Channel MOSFET
