FDS9926A - Dual N-Channel MOSFET

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	FDS9926A
Manufacturer	Fairchild Semiconductor
File Size	113.10 KB
Description	Dual N-Channel MOSFET
Datasheet	FDS9926A Datasheet

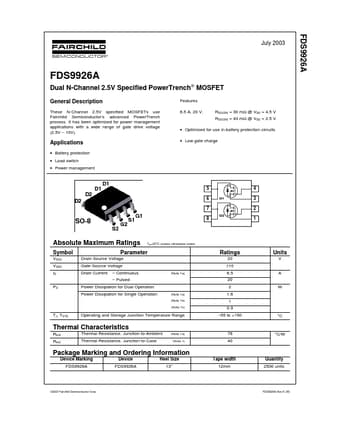

Additional preview pages of the FDS9926A datasheet.

Product details

Description

These N-Channel 2.5V specified MOSFETs use Fairchild Semiconductor’s advanced PowerTrench process. 10V). Battery protection Load switch Power management

Features

6.5 A, 20 V. RDS(ON) = 30 mΩ @ VGS = 4.5 V RDS(ON) = 43 mΩ @ VGS = 2.5 V.
Optimized for use in battery protection circuits.
Low gate charge 5 4 6 Q1 3 7 2 Q2 8 1 Absolute Maximum Ratings TA=25oC unless otherwise noted Symbol VDSS VGSS ID PD Parameter Drain-Source Voltage Gate-Source Voltage Drain Current.
Continuous.
Pulsed Power Dissipation for Dual Operation Power Dissipation for Single Operation (Note 1a) (Note 1a) (Note 1b) (Note 1c) T.
