FDS9933 Datasheet, Mosfet, Fairchild Semiconductor

FDS9933 Features

  • Mosfet

  •   –5 A,
      –20 V, RDS(ON) = 55 mΩ @ VGS =
      –4.5 V RDS(ON) = 90 mΩ @ VGS =
      –2.5 V
  • Extended VGSS range (±12V

PDF File Details

Part number:

FDS9933

Manufacturer:

Fairchild Semiconductor

File Size:

94.56kb

Download:

📄 Datasheet

Description:

Dual p-channel 2.5v specified powertrench mosfet. This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process. It has been optimized for p

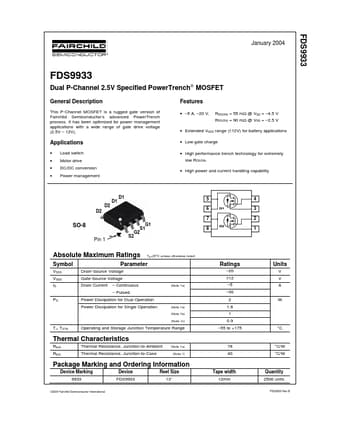

Datasheet Preview: FDS9933 📥 Download PDF (94.56kb)
Rating: 1 (2 votes)
Page 2 of FDS9933 Page 3 of FDS9933

FDS9933 Application

  • Applications with a wide range of gate drive voltage (2.5V
      – 12V). Features

  •   –5 A,
      –20 V,

TAGS

FDS9933
Dual
P-Channel
2.5V
Specified
PowerTrench
MOSFET
Fairchild Semiconductor
