FDS9934C - MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

FDS9934C MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – FDS9934C

Datasheet Details

Part number	FDS9934C
Manufacturer	Fairchild Semiconductor
File Size	182.01 KB
Description	MOSFET
Datasheet	FDS9934C Datasheet

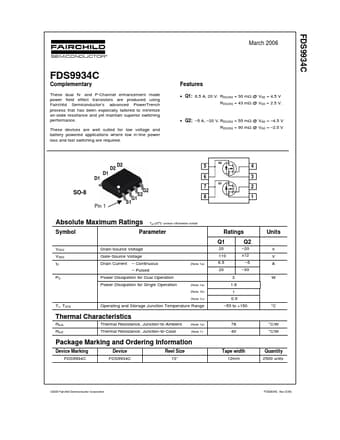

Additional preview pages of the FDS9934C datasheet.

Product details

Features

Q1: 6.5 A, 20 V. RDS(ON) = 30 mΩ @ VGS = 4.5 V RDS(ON) = 43 mΩ @ VGS = 2.5 V.
Q2:.
5 A,.
20 V, RDS(ON) = 55 mΩ @ VGS =.
4.5 V RDS(ON) = 90 mΩ @ VGS =.
2.5 V DD2 DD2 DD1 DD1 SO-8 Pin 1 SO-8 G2 S2 G G1 S1 S S S Q2 5 6 Q1 7 8 4 3 2 1 Absolute Maximum Ratings TA=25oC unless otherwise noted Symbol Parameter VDSS VGSS ID PD TJ, TSTG Drain-Source Voltage Gate-Source Voltage Drain Current.
Continuous (Note 1a).
Puls.
