FIN210AC 10-Bit Serializer / Deserializer Supporting Cameras and Small Displays up to 48MHz

The FIN210AC µSerDes™ is a low-power serializer / deserializer optimized for use in cell phone displays and camera paths. The device reduces a 10-bit data path to four wires. For camera applications, an additional master clock can be passed in the opposite direction of data flow. The device utilizes.

FIN210AC Features

* Data & Control Bits Frequency Capability Interface µController Usage Selectable Edge Rates Standby Current Core Voltage (VDDA/S) I/O Voltage (VDDP) ESD (I/O to GND) Package Ordering Information 10-bit 48MHz Camera or LCD Microcontroller, RGB, YUV m68 & i86 Yes

FIN210AC_FairchildSemiconductor.pdf

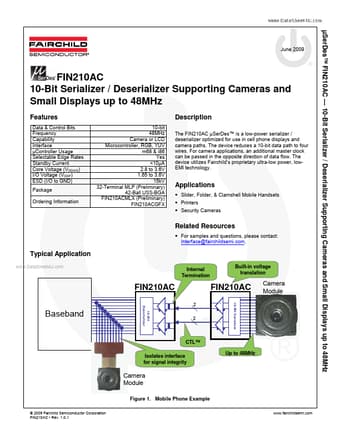

FIN210AC Datasheet Preview — Preview of FIN210AC PDF

Datasheet Details

Part number:

FIN210AC

Manufacturer:

Fairchild Semiconductor

File Size:

710.87 KB

Description:

10-bit serializer / deserializer supporting cameras and small displays up to 48mhz.
