FIN212AC Datasheet - Fairchild Semiconductor

FIN212AC 12-Bit Serializer Deserializer

The FIN212AC µSerDes is a low-power serializer / deserializer optimized for use in cell phone displays and camera paths. The device reduces a 12-bit data path to four wires. The device can be configured as a serializer or deserializer through the DIRI pin, minimizing component types in the system. F.

FIN212AC Features

* Low Power Consumption Low Power, Proprietary, CTL I/O Serial Interface Wide PLL Input Frequency Range Wide Parallel Supply Voltage Range: 1.65 to 3.6V Low Power Core Operation: VDDS/A=2.5 to 3.6V Built-in LV-CMOS Voltage Translation Capabil

FIN212AC_FairchildSemiconductor.pdf

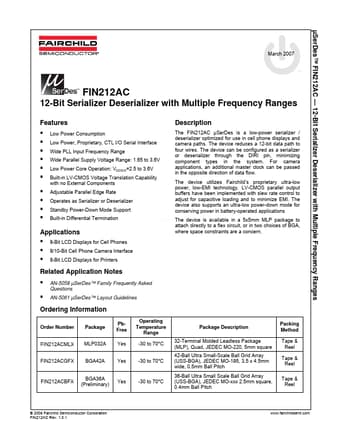

FIN212AC Datasheet Preview — Preview of FIN212AC PDF

Datasheet Details

Part number:

FIN212AC

Manufacturer:

Fairchild Semiconductor

File Size:

540.64 KB

Description:

12-bit serializer deserializer.

FIN212AC Distributor
