FIN24A Datasheet - Fairchild Semiconductor

FIN24A Low Voltage 24-Bit Bi-Directional Serializer/Deserializer

The FIN24A allows for a pair of SerDes to interleave data from two different data sources going opposite directions or standard bi-directional interface operation. The bi-directional data flow is controlled through use of a direction (DIRI) control pin. The devices can be configured to operate in a .

FIN24A Features

* s Low power consumption s Low power standards based LVDS differential interface s LVCMOS parallel I/O interface

* 2 mA source/sink current

* Over-voltage tolerant control signals s I/O Power Supply range between 1.65V and 3.6V s Analog Power Supply range of 2.775V r 5% s Multi-Mode

FIN24A_FairchildSemiconductor.pdf

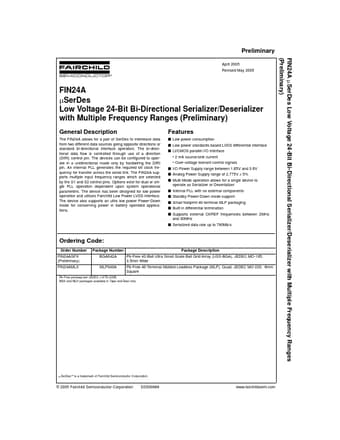

FIN24A Datasheet Preview — Preview of FIN24A PDF

Datasheet Details

Part number:

FIN24A

Manufacturer:

Fairchild Semiconductor

File Size:

1.74 MB

Description:

Low voltage 24-bit bi-directional serializer/deserializer.
