FJA4213 PNP Epitaxial Silicon Transistor

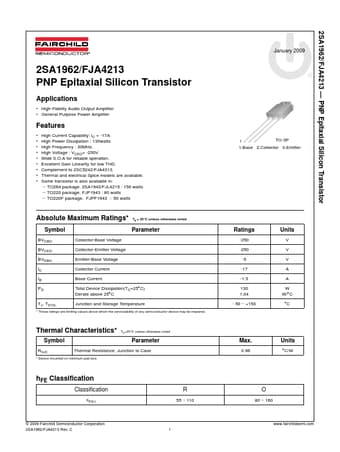

📥 Download Datasheet  Datasheet Preview Page 1

Description

2SA1962/FJA4213 PNP Epitaxial Silicon Transistor Applications * High-Fidelity Audio Output Amplifier * General Purpose Power Amplifier.

📥 Download Datasheet

Preview of FJA4213 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
FJA4213
Manufacturer
Fairchild Semiconductor
File Size
439.13 KB
Datasheet
FJA4213-FairchildSemiconductor.pdf
Description
PNP Epitaxial Silicon Transistor

Features

* High Current Capability: IC = -17A
* High Power Dissipation : 130watts
* High Frequency : 30MHz.
* High Voltage : VCEO= -250V
* Wide S. O. A for reliable operation.
* Excellent Gain Linearity for low THD.
* Complement to 2SC5242/FJA4313.

Applications

* High-Fidelity Audio Output Amplifier
