FJAF6810A High Voltage Color Display Horizontal Deflection Output

FJAF6810A FJAF6810A High Voltage Color Display Horizontal Deflection Output High Collector-Base Breakdown Voltage : BVCBO = 1550V High Switching Speed : tF(typ.) =0.1µs For Color Monitor TO-3PF 1 1.Base 2.Collector 3.Emitter NPN Triple Diffused Planar Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Curren.

FJAF6810A Datasheet (236.55 KB)

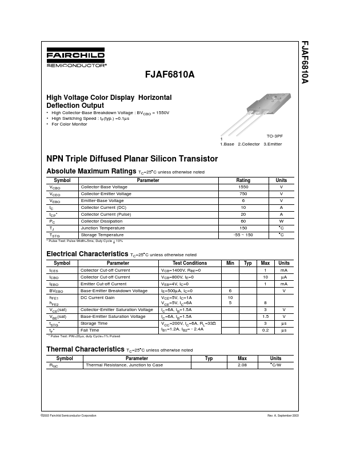

FJAF6810A Datasheet Preview — Preview of FJAF6810A PDF

Datasheet Details

Part number:

FJAF6810A

Manufacturer:

Fairchild Semiconductor

File Size:

236.55 KB

Description:

High voltage color display horizontal deflection output.
