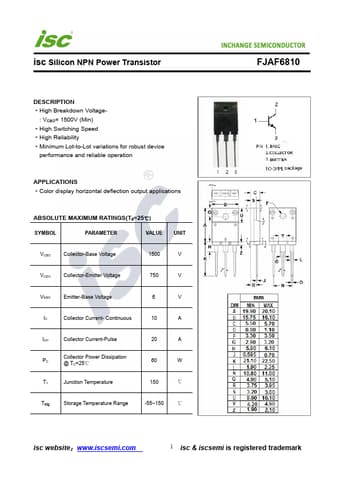

FJAF6810 Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

FJAF6810

Manufacturer:

INCHANGE

File Size:

217.85kb

Download:

📄 Datasheet

Description:

Npn transistor.

High Breakdown Voltage- : VCBO= 1500V (Min)

High Switching Speed

High Reliability

Minimum Lot-to-

FJAF6810 Application

• Applications
• Color display horizontal deflection output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCB
