FJAF6812 NPN Triple Diffused Planar Silicon Transistor

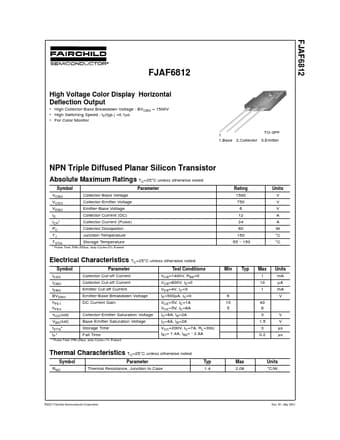

FJAF6812 FJAF6812 High Voltage Color Display Horizontal Deflection Output High Collector-Base Breakdown Voltage : BVCBO = 1500V High Switching Speed : tF(typ.) =0.1µs For Color Monitor TO-3PF 1 1.Base 2.Collector 3.Emitter NPN Triple Diffused Planar Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current .
