FJA4313 NPN Transistor

FJA4313 Description

isc Silicon NPN Power Transistor FJA4313 .
High Collector Breakdown Voltage- : V(BR)CEO= 230V(Min. Good Linearity of hFE. Complement to Type FJA4213. Minimum Lot-to-Lot varia.

FJA4313 Applications

* Power amplifier applications
* Recommend for 80W high fidelity audio frequency amplifier output stage applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 230 V VCEO Collector-Emitter Voltage 230 V VEBO Emitter-Base Voltage 5 V

📥 Download Datasheet

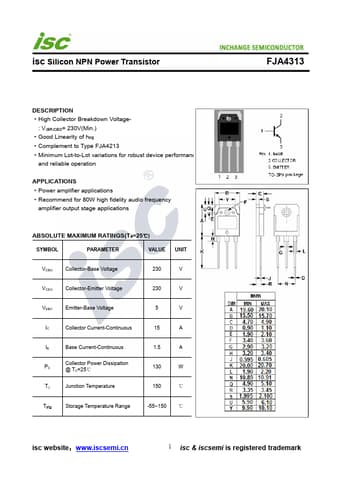

Preview of FJA4313 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FJA4313
Manufacturer
INCHANGE
File Size
200.90 KB
Datasheet
FJA4313-INCHANGE.pdf
Description
NPN Transistor
