FJA4310 NPN Transistor

FJA4310 Description

isc Silicon NPN Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= 140V(Min). DC Current Gain- : hFE= 50(Min)@ IC= 3A. Complement to Type FJA4210. Mini.

FJA4310 Applications

* Designed for audio and general purpose applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 200 V VCEO Collector-Emitter Voltage 140 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 10 A IB Base Current-Conti

📥 Download Datasheet

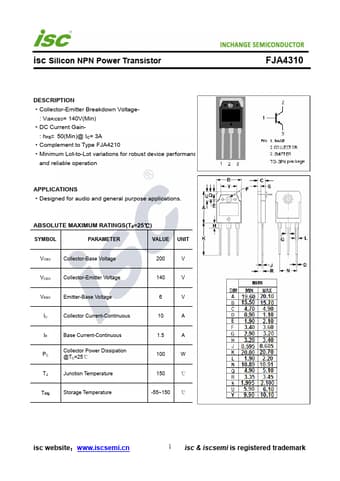

Preview of FJA4310 PDF
datasheet Preview Page 2

Datasheet Details

Part number
FJA4310
Manufacturer
INCHANGE
File Size
198.06 KB
Datasheet
FJA4310-INCHANGE.pdf
Description
NPN Transistor
