FJAF6810D NPN Triple Diffused Planar Silicon Transistor

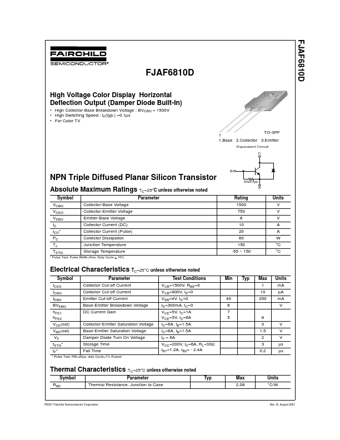

FJAF6810D FJAF6810D High Voltage Color Display Horizontal Deflection Output (Damper Diode Built-In) High Collector-Base Breakdown Voltage : BVCBO = 1500V High Switching Speed : tF(typ.) =0.1µs For Color TV TO-3PF 1 1.Base 2.Collector 3.Emitter Equivalent Circuit C B NPN Triple Diffused Planar Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Vo.

FJAF6810D_FairchildSemiconductor.pdf

FJAF6810D Datasheet Preview — Preview of FJAF6810D PDF

Datasheet Details

Part number:

FJAF6810D

Manufacturer:

Fairchild Semiconductor

File Size:

77.78 KB

Description:

Npn triple diffused planar silicon transistor.
