FPF1003

IntelliMAX Advanced Load Management Products

FPF1003 Features

* 1.2 to 5.5V Input Voltage Range

* RDS(ON) = 30 mΩ @ VIN = 5.5V

* RDS(ON) = 35 mΩ @ VIN = 3.3V

* ESD Protected, above 2000V HBM tm General Description The FPF1003 is a low RDS P-Channel MOSFET load switch with controlled turn-on. The input voltage range operates fr

FPF1003 General Description

The FPF1003 is a low RDS P-Channel MOSFET load switch with controlled turn-on. The input voltage range operates from 1.2V to 5.5V to fulfill today's Ultra Portable Device's supply requirement. Switch control is by a logic input (ON) capable of interfacing directly with low voltage control signal. FP.

FPF1003 Datasheet (484.54 KB)

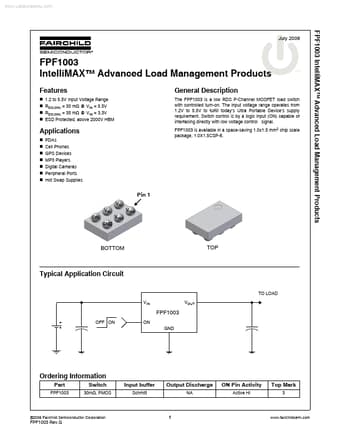

Preview of FPF1003 PDF

Datasheet Details

Part number:

FPF1003

Manufacturer:

Fairchild Semiconductor

File Size:

484.54 KB

Description:

Intellimax advanced load management products.
