FPF1006, FPF1005 - Advanced Load Management Products

FPF1006 Description

www.DataSheet4U.com FPF1005-FPF1006 IntelliMAXTM Advanced Load Management Products September 2006 FPF1005-FPF1006 IntelliMAXTM Advanced Load Manage.
The FPF1005 & FPF1006 are low RDS P-Channel MOSFET load switches with CMOS controlled turn-on targeting small package load switch applications.

FPF1006 Features

* 1.2 to 5.5V Input Voltage Range
* Typical RDS(ON) = 50mΩ @ VIN = 5.5V
* Typical RDS(ON) = 55mΩ @ VIN = 3.3V

FPF1006 Applications

* The input voltage range operates from 1.2V to 5.5V. Switch control is by a logic input (ON) capable of interfacing directly with low voltage control signals. Optional on-chip load resistor is added for output quick discharge when switch is turned off. Both FPF1005 & FPF1006 are available in a small

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: FPF1006, FPF1005. Please refer to the document for exact specifications by model.

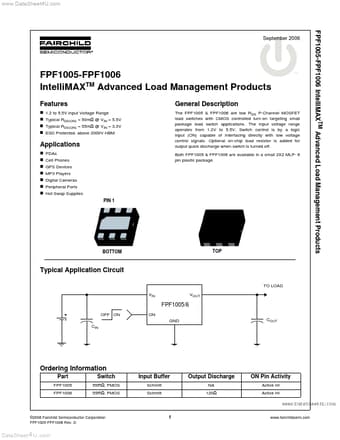

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FPF1006, FPF1005
Manufacturer
Fairchild Semiconductor
File Size
423.64 KB
Datasheet
FPF1005_FairchildSemiconductor.pdf
Description
Advanced Load Management Products
Note
This datasheet PDF includes multiple part numbers: FPF1006, FPF1005.
Please refer to the document for exact specifications by model.
