FPF1007

Advanced Load Products

FPF1007 Features

* 1.2 to 5.5V Input Voltage Range

* Typical RON = 30 mΩ @ VIN = 5.5V

* Typical RON = 40 mΩ @ VIN = 3.3V

* Fixed Three Different Turn-on Rise-time 10µs/80µs/1ms

* Low < 10µA @ VIN = 3.3V Quiescent Current

* Internal ON Pin Pull Down

* Output Dis

FPF1007 General Description

The FPF1007/8/9 are low RDS P-Channel MOSFET load switches offered in a selection of 10µs, 80µs, and 1ms slew rate turn-on options for transient/in-rush current control. To support trends in mobile application requirements the minimum operating input voltage has been reduced down to 1.2V, the input .

FPF1007 Datasheet (1.22 MB)

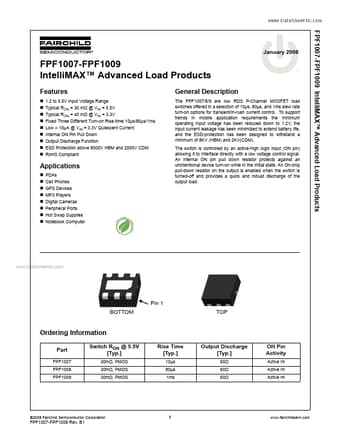

Preview of FPF1007 PDF

Datasheet Details

Part number:

FPF1007

Manufacturer:

Fairchild Semiconductor

File Size:

1.22 MB

Description:

Advanced load products.
