FPF1004 - Advanced Load Management Products

FPF1004 Description

FPF1003-FPF1004 IntelliMAX™ Advanced Load Management Products December 2006 FPF1003-FPF1004 IntelliMAX™ Advanced Load Management Products .
The FPF1003 & FPF1004 are low RDS P-Channel MOSFET load switches with controlled turn-on.

FPF1004 Features

* 1.2 to 5.5V Input Voltage Range
* RDS(ON) = 30 mΩ @ VIN = 5.5V
* RDS(ON) = 35 mΩ @ VIN = 3.3V

FPF1004 Applications

* PDAs
* Cell Phones
* GPS Devices
* MP3 Players
* Digital Cameras
* Peripheral Ports
* Hot Swap Supplies
* RoHS Compliant Pin 1 VIN VIN ON GND VOUT VOUT BOTTOM TOP Typical Application Circuit TO LOAD VIN VOUT FPF1003/4 OFF ON ON G

📥 Download Datasheet

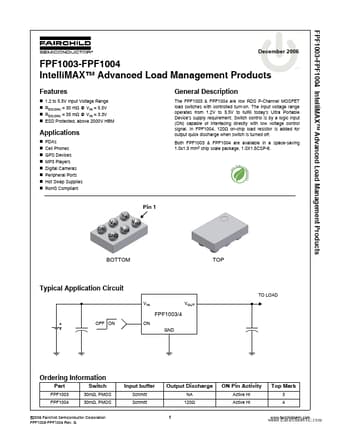

Preview of FPF1004 PDF
