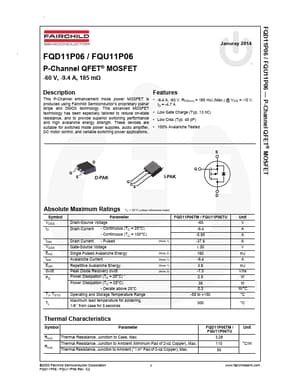

FQU11P06 Datasheet, Mosfet, Fairchild Semiconductor

FQU11P06 Features

• Mosfet
• -9.4 A, -60 V, RDS(on) = 185 mΩ (Max.) @ VGS = -10 V, ID = -4.7 A
• Low Gate Charge (Typ. 13 nC)
• Low Crss (Typ. 45 pF)
• 100% Avalanche Tested G S

PDF File Details

Part number:

FQU11P06

Manufacturer:

Fairchild Semiconductor

File Size:

1.22MB

Download:

📄 Datasheet

Description:

60v p-channel mosfet. This P-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technolog

FQU11P06 Application

• Applications . Features
• -9.4 A, -60 V, RDS(on) = 185 mΩ (Max.) @ VGS = -10 V, ID = -4.7 A
• Low Gate Charge (Typ. 13 nC)
