FSTU16211

24-Bit Bus Switch with .2V Undershoot Protection (Preliminary)

FSTU16211 Features

* s Undershoot hardened to

* 2V (A and B Ports) s Slower output enable times to prevent signal disruption s 25Ω switch connection between two ports s Minimal propagation delay through the switch s Low lCC s Zero bounce in flow-through mode s Control inputs compatible with TTL level s See Applic

FSTU16211 General Description

The Fairchild Switch FSTU162211 provides 24-bits of highspeed CMOS TTL-compatible bus switching. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device is organized as a 12-bit or 24-bit b.

FSTU16211 Datasheet (271.14 KB)

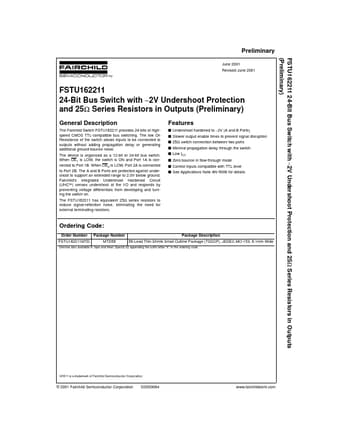

Preview of FSTU16211 PDF

Datasheet Details

Part number:

FSTU16211

Manufacturer:

Fairchild Semiconductor

File Size:

271.14 KB

Description:

24-bit bus switch with .2v undershoot protection (preliminary).
Preliminary FSTU162211 24-Bit Bus Switch with

*2V Undershoot Protection and 25Ω Series Resistors in Outputs (Preliminary) June 2001 Revised .
