FSTU162450 Datasheet, (preliminary), Fairchild Semiconductor

FSTU162450 Features

  • (preliminary) s Undershoot protected to
  • 2V (A and B Ports) s 25Ω switch connection between two ports s Minimal propagation delay through the switch s Low lCC s Zero bounce in flow-through mo

PDF File Details

Part number:

FSTU162450

Manufacturer:

Fairchild Semiconductor

File Size:

476.35kb

Download:

📄 Datasheet

Description:

Configurable 4-bit to 20-bit bus switch with .2v undershoot protection and 25 series resistors in outputs (preliminary). The Fairchild Universal Bus Switch FSTU162450 provides 4-bit, 5-bit, 8-bit, 10-bit, 16-bit, 20-bit of high-speed CMOS TTL-compatible

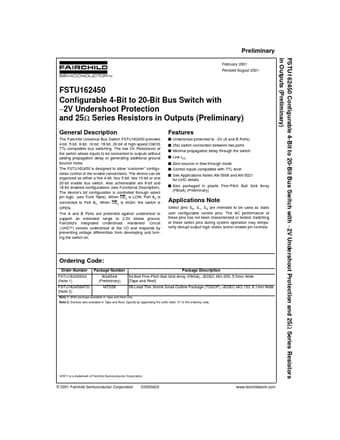

Datasheet Preview: FSTU162450 📥 Download PDF (476.35kb)
Page 2 of FSTU162450 Page 3 of FSTU162450

FSTU162450 Application

  • Applications Notes AN-5008 and AN-5021 for UHC details s Also packaged in plastic Fine-Pitch Ball Grid Array (FBGA) (Preliminary) Applications Note
