FSTU32160

16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch

FSTU32160 Features

* Undershoot hardened to

* 2 V (A and B Ports)

* Slower Output Enable Times prevent Signal Disruption

* 4 W Switch Connection between Two Ports

* Minimal Propagation Delay through the Switch

* Low ICC

* Zero Bounce in Flow

* through Mode

FSTU32160 General Description

The ON Semiconductor Switch FSTU32160 is a 16

*bit to 32

*bit highspeed CMOS TTL

*compatible multiplexer/demultiplexer bus switch. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce.

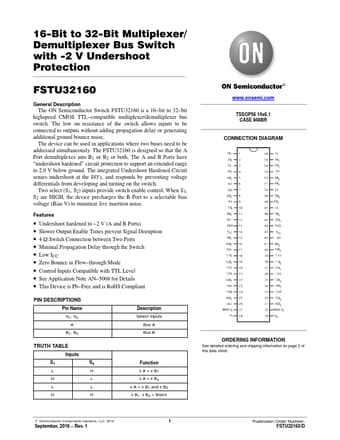

FSTU32160 Datasheet (220.57 KB)
