FSTU32160A

16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch

FSTU32160A Features

* s Undershoot hardened to

* 2V (A and B Ports). s 4Ω switch connection between two ports. s Minimal propagation delay through the switch. s Low lCC. s Zero bounce in flow-through mode. s Control inputs compatible with TTL level. s See Applications Note AN-5008 for details Ordering Code: Order

FSTU32160A General Description

The Fairchild Switch FSTU32160A is a 16-bit to 32-bit high-speed CMOS TTL-compatible multiplexer/demultiplexer bus switch. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device can be use.

FSTU32160A Datasheet (96.18 KB)

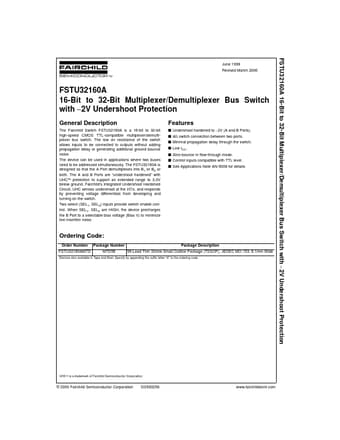

Preview of FSTU32160A PDF

Datasheet Details

Part number:

FSTU32160A

Manufacturer:

Fairchild Semiconductor

File Size:

96.18 KB

Description:

16-bit to 32-bit multiplexer/demultiplexer bus switch.
FSTU32160A 16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch with

*2V Undershoot Protection June 1999 Revised March 2000 FSTU32160A 16-B.
