FSTU32X384

20-Bit Low Power Bus Switch with -2V Undershoot Protection

FSTU32X384 Features

* s 4Ω switch connection between two ports s Minimal propagation delay through the switch s Ultra low power with < 0.1 µA typical ICC s Zero ground bounce in flow-through mode s Control inputs compatible with TTL level s See Application Note AN-5008 for details on FSTU - Undershoot Protected Fairchild

FSTU32X384 General Description

The Fairchild Switch FSTU32X384 provides 20 bits of highspeed CMOS TTL-compatible bus switches. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device is organized as four 5-bit switches w.

FSTU32X384 Datasheet (241.00 KB)

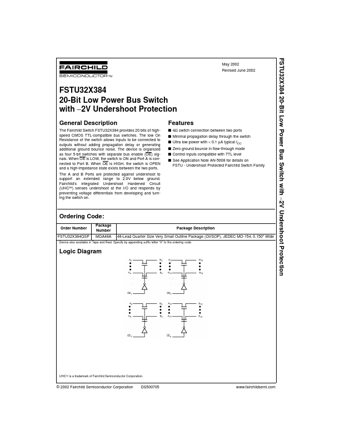

Preview of FSTU32X384 PDF

Datasheet Details

Part number:

FSTU32X384

Manufacturer:

Fairchild Semiconductor

File Size:

241.00 KB

Description:

20-bit low power bus switch with -2v undershoot protection.
FSTU32X384 20-Bit Low Power Bus Switch with

*2V Undershoot Protection May 2002 Revised June 2002 FSTU32X384 20-Bit Low Power Bus Switch with.
