FSTU32160, 16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch

FSTU32160 16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch with *2V Undershoot Protection May 1999 Revised March 2000 FSTU32160 16-Bit .
The Fairchild Switch FSTU32160 is a 16-bit to 32-bit highspeed CMOS TTL-compatible multiplexer/demultiplexer bus switch.

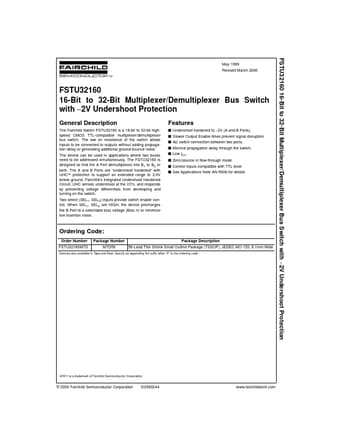

datasheet Preview Page 1 from Datasheet4u.com

FSTU32160_FairchildSemiconductor.pdf

FSTU32160 Datasheet Preview — Preview of FSTU32160 PDF

Datasheet Details

Part number:

FSTU32160

Manufacturer:

Fairchild Semiconductor

File Size:

96.51 KB

Description:

16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch

Features

* s Undershoot hardened to
* 2V (A and B Ports). s Slower Output Enable times prevent signal disruption s 4Ω switch connection between two ports. s Minimal propagation delay through the switch. s Low lCC. s Zero bounce in flow-through mode. s Control inputs compatible with TTL level. s See Appl

Applications

* where two buses need to be addressed simultaneously. The FSTU32160 is designed so that the A Port demultiplexes into B1 or B2 or both. The A and B Ports are “undershoot hardened” with UHC™ protection to support an extended range to 2.0V below ground. Fairchild’s integrated Undershoot Hardened Circui
