FSTU3384

10-Bit Bus Switch with -2V Undershoot Hardened Circuit (UHC) Protection

FSTU3384 Features

* s 4Ω switch connection between two ports s Undershoot Hardened to -2.0V. s Minimal propagation delay through the switch s Low lCC. s Zero ground bounce in flow-through mode s Control inputs compatible with TTL level s See Applications Note AN-5008 for details. Ordering Code: Order Number FSTU3384WM

FSTU3384 General Description

The Fairchild Switch FSTU3384 provides 10 bits of highspeed CMOS TTL-compatible bus switches. The low on resistance of the switch allows inputs to be connected to outputs without adding propagation delay generating additional ground bounce noise. Both the A Ports and the B Ports are “undershoot hard.

FSTU3384 Datasheet (99.48 KB)

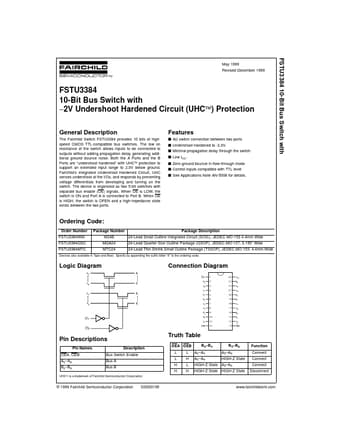

Preview of FSTU3384 PDF

Datasheet Details

Part number:

FSTU3384

Manufacturer:

Fairchild Semiconductor

File Size:

99.48 KB

Description:

10-bit bus switch with -2v undershoot hardened circuit (uhc) protection.
FSTU3384 10-Bit Bus Switch with May 1999 Revised December 1999 FSTU3384 10-Bit Bus Switch with

*2V Undershoot Hardened Circuit (UHC) Protec.
