FSTU16245 16-Bit Bus Switch with −2V Undershoot Protection

The Fairchild Switch FSTU16245 provides 16-bits of highspeed CMOS TTL-compatible bus switching. The low On Resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. The device is organized as a 16-bit switch. Ther.

FSTU16245 Features

* I Undershoot hardened to

* 2V (A and B Ports) I 4Ω switch connection between two ports. I Minimal propagation delay through the switch. I Low lCC. I Zero bounce in flow-through mode. I Control inputs compatible with TTL level. I See Application Note AN-5008 for details Ordering Code: Order N

FSTU16245_FairchildSemiconductor.pdf

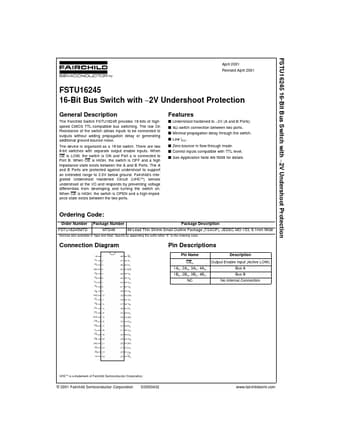

FSTU16245 Datasheet Preview — Preview of FSTU16245 PDF

Datasheet Details

Part number:

FSTU16245

Manufacturer:

Fairchild Semiconductor

File Size:

190.07 KB

Description:

16-bit bus switch with −2v undershoot protection.
