H11G2 HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPLERS

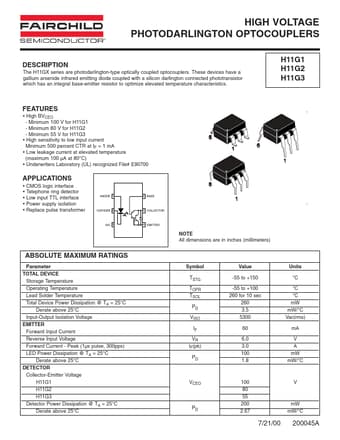

📥 Download Datasheet Datasheet Preview Page 1

Description

HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPLERS .
The H11GX series are photodarlington-type optically coupled optocouplers.

📥 Download Datasheet

Preview of H11G2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
H11G2
Manufacturer
Fairchild Semiconductor
File Size
133.91 KB
Datasheet
H11G2_FairchildSemiconductor.pdf
Description
HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPLERS

Features

* High BVCEO - Minimum 100 V for H11G1 - Minimum 80 V for H11G2 - Minimum 55 V for H11G3
* High sensitivity to low input current Minimum 500 percent CTR at IF = 1 mA
* Low leakage current at elevated temperature (maximum 100 µA at 80°C)
* Underwriters Laboratory (UL)

Applications

* CMOS logic interface Telephone ring detector Low input TTL interface Power supply isolation Replace pulse transformer ANODE 1 6 BASE CATHODE 2 5 COLLECTOR N/C 3 4 EMITTER NOTE All dimensions are in inches (millimeters) ABSOLUTE MAXIMUM RATINGS
