H11G3X - HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR

This page provides the datasheet information for the H11G3X, a member of the H11G1 HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR family.

Datasheet Summary

Description

3.0 The H11G_ series are optically coupled isolators consisting of an infrared light emitting diode and 0.5 a high voltage NPN silicon photo darlington 3.0 which has an integral base-emitter resistor to 0.26 3.35 0.5 optimise switching speed and elevated temperature characteristics in a standard 6pi

Features

  • Options :10mm lead spread - add G after part no. Surface mount - add SM after part no. Tape&reel - add SMT&R after part no. l High Isolation Voltage (5.3kVRMS ,7.5kVPK ) l High Current Transfer Ratio ( 1000% min) l High BVCEO (H11G1 - 100V min. ) l Low collector dark current :100nA max. at 80V VCE l Low input current 1mA IF l Storage Temperature -55°C to + 150°C Operating Temperature -55°C to + 100°C Lead Soldering Temperature (1/16 inch (1.6mm) from case for 10 secs) 260°C INPUT DIODE Forward C.

📥 Download Datasheet

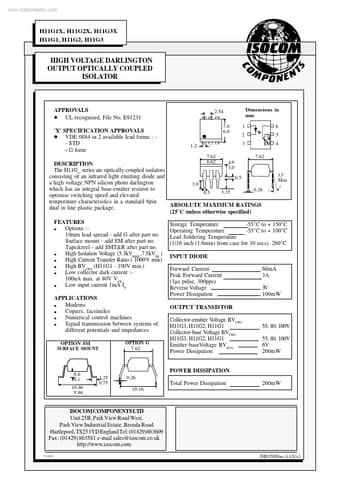

Datasheet preview – H11G3X

Datasheet Details

Part number H11G3X
Manufacturer ISOCOM COMPONENTS
File Size 81.03 KB
Description HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR
Datasheet download datasheet H11G3X Datasheet
Additional preview pages of the H11G3X datasheet.

📁 Similar Datasheet

  • H11G3 - HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • H11G3 - 6-Pin DIP Optoisolators Darlington Output(On-Chip Resistors) (Motorola Inc)
  • H11G1 - 6-Pin DIP Optoisolators Darlington Output(On-Chip Resistors) (Motorola Inc)
  • H11G1 - HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPERS (QT Optoelectronics)
  • H11G1 - HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • H11G2 - HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPLERS (Fairchild Semiconductor)
  • H11G2 - 6-Pin DIP Optoisolators Darlington Output(On-Chip Resistors) (Motorola Inc)
  • H11G2 - HIGH VOLTAGE PHOTODARLINGTON OPTOCOUPERS (QT Optoelectronics)
  • H11-212QVTG - SMD LED (QILSTE)
  • H11-212QVTG - SMD LED (QILSTE)
Other Datasheets by ISOCOM COMPONENTS
  • H11G3 - HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR
  • H11G1 - HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR
  • H11G1X - HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR
  • H11G2 - HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR
  • H11G2X - HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR
  • H11A1 - ISOLATOR PHOTOTRANSISTOR
  • H11A2 - ISOLATOR PHOTOTRANSISTOR
  • H11A3 - ISOLATOR PHOTOTRANSISTOR

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com H11G1X, H11G2X, H11G3X H11G1, H11G2, H11G3 HIGH VOLTAGE DARLINGTON OUTPUT OPTICALLY COUPLED ISOLATOR APPROVALS l UL recognised, File No. E91231 'X' SPECIFICATION APPROVALS l VDE 0884 in 2 available lead forms : - STD - G form 2.54 7.0 6.0 1.2 7.62 1 2 3 Dimensions in mm 6 5 4 7.62 6.62 4.0 DESCRIPTION 3.0 The H11G_ series are optically coupled isolators consisting of an infrared light emitting diode and 0.5 a high voltage NPN silicon photo darlington 3.0 which has an integral base-emitter resistor to 0.26 3.35 0.5 optimise switching speed and elevated temperature characteristics in a standard 6pin ABSOLUTE MAXIMUM RATINGS dual in line plastic package. (25°C unless otherwise specified) 13° Max FEATURES Options :10mm lead spread - add G after part no.
