HCPL2601M, Single-Channel High-Speed 10 MBit/s Logic Gate Optocouplers

Single-Channel: 6N137M, HCPL2601M, HCPL2611M Dual-Channel: HCPL2630M, HCPL2631M * High Speed 10MBit/s Logic Gate Optocouplers April 2013 Sin.
The 6N137M, HCPL2601M, HCPL2611M single-channel and HCPL2630M, HCPL2631M dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled t.

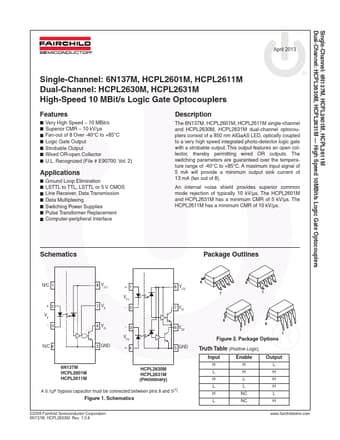

datasheet Preview Page 1 from Datasheet4u.com

HCPL2601M-FairchildSemiconductor.pdf

HCPL2601M Datasheet Preview — Preview of HCPL2601M PDF

Datasheet Details

Part number:

HCPL2601M

Manufacturer:

Fairchild Semiconductor

File Size:

3.27 MB

Description:

Single-Channel High-Speed 10 MBit/s Logic Gate Optocouplers

Applications

* Ground Loop Elimination LSTTL to TTL, LSTTL or 5 V CMOS Line Receiver, Data Transmission Data Multiplexing Switching Power Supplies Pulse Transformer Replacement Computer-peripheral Interface Schematics Package Outlines N/C 1 8 VCC 8 + 1 VF1 8 VCC 1
