HCPL2212 Datasheet - Hewlett-Packard

HCPL2212 Very High CMR / Wide VCC Logic Gate Optocouplers

The HCPL-22XX, HCPL-02XX, and HCNW22XX are opticallycoupled logic gates. The HCPL-22XX, and HCPL-02XX contain a GaAsP LED while the HCNW22XX contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logiccompatible.

HCPL2212 Features

* 10 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1000 V (HCPL-2211/2212/0211/ 2232, HCNW2211)

* Wide Operating VCC Range: 4.5 to 20 Volts

* 300 ns Propagation Delay Guaranteed over the Full Temperature Range

* 5 Mbd Typical Signal Rate

* Low Input Curre

HCPL2212 Datasheet (444.08 KB)

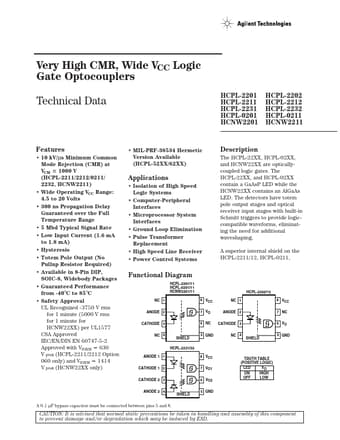

Preview of HCPL2212 PDF
HCPL2212 Datasheet Preview Page 2 HCPL2212 Datasheet Preview Page 3

Datasheet Details

Part number:

HCPL2212

Manufacturer:

Hewlett-Packard

File Size:

444.08 KB

Description:

Very high cmr / wide vcc logic gate optocouplers.
