HCPL2231

(HCPL-xxxx) Very High CMR / Wide VCC Logic Gate Optocouplers

Hewlett-Packard

HCPL2231 Features

* 10 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1000 V (HCPL-2211/2212/0211/ 2232, HCNW2211)

* Wide Operating VCC Range: 4.5 to 20 Volts

* 300 ns Propagation Delay Guaranteed over the Full Temperature Range

* 5 Mbd Typical Signal Rate

* Low Input Curre

HCPL2231 General Description

The HCPL-22XX, HCPL-02XX, and HCNW22XX are opticallycoupled logic gates. The HCPL-22XX, and HCPL-02XX contain a GaAsP LED while the HCNW22XX contains an AlGaAs LED. The detectors have totem pole output stages and optical receiver input stages with built-in Schmitt triggers to provide logiccompatible.

HCPL2231 Datasheet (444.08 KB)

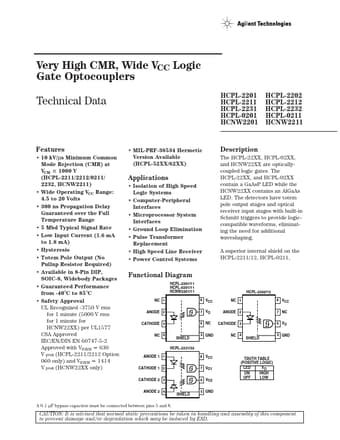

HCPL2231 Datasheet Preview — Preview of HCPL2231 PDF

Datasheet Details

Part number:

HCPL2231

Manufacturer:

Hewlett-Packard

File Size:

444.08 KB

Description:

(hcpl-xxxx) very high cmr / wide vcc logic gate optocouplers.
Very High CMR, Wide VCC Logic Gate Optocouplers Technical Data HCPL-2201 HCPL-2211 HCPL-2231 HCPL-0201 HCNW2201 HCPL-2202 HCPL-2212 HCPL-2232 HCPL-021.
