HCPL2201 - Very High CMR / Wide VCC Logic Gate Optocouplers

Product Overview

Hewlett-Packard

Part number	HCPL2201
Manufacturer	Hewlett-Packard
File Size	444.08 KB
Description	Very High CMR / Wide VCC Logic Gate Optocouplers
Datasheet	HCPL2201 Datasheet
Note	This datasheet PDF includes multiple part numbers: HCPL2201, HCPL0201_Hewlett. Please refer to the document for exact specifications by model.

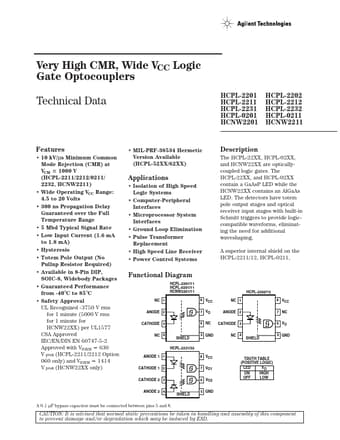

Additional preview pages of the HCPL2201 datasheet.

The HCPL-22XX, HCPL-02XX, and HCNW22XX are opticallycoupled logic gates. Isolation of High Speed Logic Systems Computer

10 kV/µs Minimum Common Mode Rejection (CMR) at VCM = 1000 V (HCPL-2211/2212/0211/ 2232, HCNW2211).
Wide Operating VCC Range: 4.5 to 20 Volts.
300 ns Propagation Delay Guaranteed over the Full Temperature Range.
5 Mbd Typical Signal Rate.
Low Input Current (1.6 mA to 1.8 mA).
Hysteresis.
Totem Pole Output (No Pullup Resistor Required).
Available in 8-Pin DIP, SOIC-8, Widebody Packages.
Guaranteed Performance from -.
