HCPL2530M

Dual-Channel High Speed Transistor Optocouplers

HCPL2530M Features

* High Speed

* 1 MBit/s

* Dual-Channel: HCPL2530M, HCPL2531M

* CTR Guaranteed 0°C to 70°C

* No Base Connection for Improved Noise Immunity (HCPL4503M)

* Superior CMR of 15,000 V/μs Minimum (HCPL4503M)

* Safety and Regulatory Approvals

HCPL2530M General Description

The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototra.

HCPL2530M Datasheet (616.00 KB)

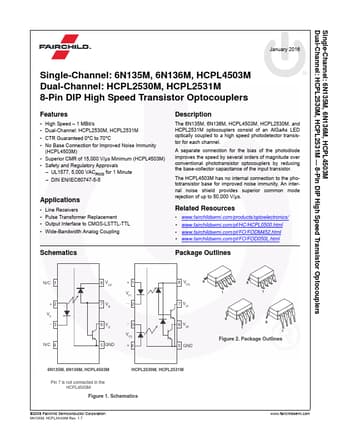

Preview of HCPL2530M PDF

Datasheet Details

Part number:

HCPL2530M

Manufacturer:

Fairchild Semiconductor

File Size:

616.00 KB

Description:

Dual-channel high speed transistor optocouplers.
Single-Channel: 6N135M, 6N136M, HCPL4503M Dual-Channel: HCPL2530M, HCPL2531M

* 8-Pin DIP High Speed Transistor Optocouplers January 2016 Sin.
