HGT1S20N35G3VL - N-Channel IGBT

Fairchild Semiconductor

HGT1S20N35G3VL Description

HGTP20N35G3VL, HGT1S20N35G3VL, HGT1S20N35G3VLS December 2001 20A, 350V N-Channel, Logic Level, Voltage Clamping IGBTs Packages JEDEC TO-220AB EMITTER.
This N-Channel IGBT is a MOS gated, logic level device which is intended to be used as an ignition coil driver in automotive ignition circuits.

HGT1S20N35G3VL Features

* Logic Level Gate Drive
* Internal Voltage Clamp
* ESD Gate Protection
* TJ = 175oC

📥 Download Datasheet

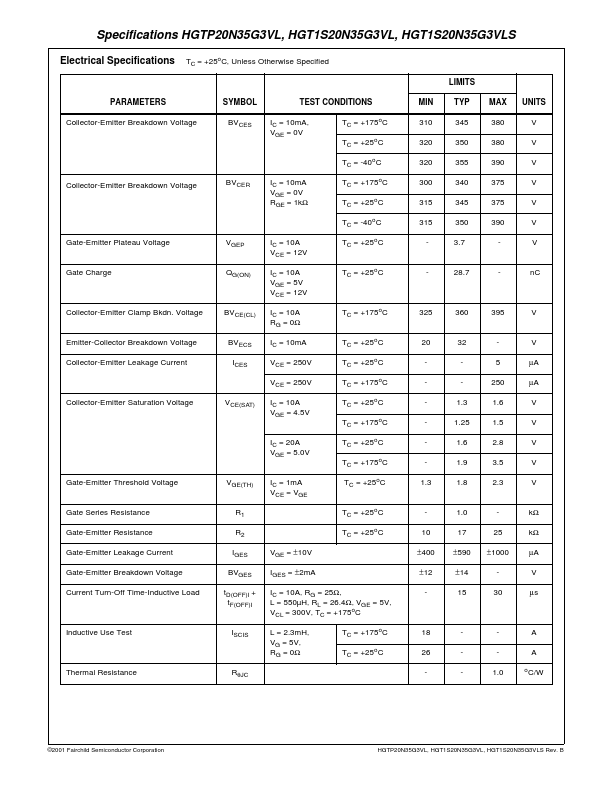

HGT1S20N35G3VL Datasheet Preview — Preview of HGT1S20N35G3VL PDF

Datasheet Details

Part number: HGT1S20N35G3VL
Manufacturer: Fairchild Semiconductor
File Size: 209.49 KB
Datasheet: HGT1S20N35G3VL_FairchildSemiconductor.pdf
Description: N-Channel IGBT
