HMA124, FULL PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS

FULL PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS HMA121 .
The HMA series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a compact 4-pin mini-ﬂat package.

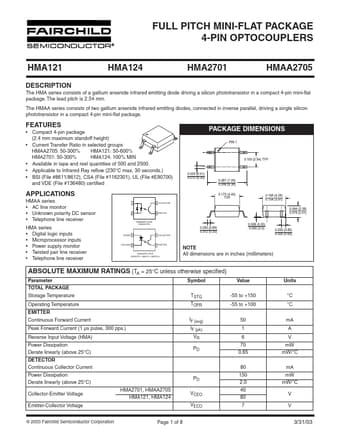

datasheet Preview Page 1 from Datasheet4u.com

HMA124_FairchildSemiconductor.pdf

HMA124 Datasheet Preview — Preview of HMA124 PDF

Datasheet Details

Part number:

HMA124

Manufacturer:

Fairchild Semiconductor

File Size:

502.59 KB

Description:

FULL PITCH MINI-FLAT PACKAGE 4-PIN OPTOCOUPLERS

Features

* Compact 4-pin package (2.4 mm maximum standoff height)
* Current Transfer Ratio in selected groups HMAA2705: 50-300% HMA121: 50-600% HMA2701: 50-300% HMA124: 100% MIN
* Available in tape and reel quantities of 500 and 2500.
* Applicable to Infrared Ray reﬂow (230°C

Applications

* HMAA series
* AC line monitor
* Unknown polarity DC sensor
* Telephone line receiver HMA series
* Digital logic inputs
* Microprocessor inputs
* Power supply monitor
* Twisted pair line receiver
* Telephone line receiver 1 4 COLLECTOR 2
