HMA510

16 x 16-Bit CMOS Parallel Multiplier Accumulator

HMA510 Features

* 16 x 16-Bit Parallel Multiplication with Accumulation to a 35-Bit Result

* High-Speed (45ns) Multiply Accumulate Time

* Low Power CMOS Operation - ICCSB = 500µA Maximum - ICCOP = 7.0mA Maximum at 1.0MHz

* HMA510 is Compatible with the CY7C510 and the IDT7210

HMA510 General Description

The HMA510 is a high speed, low power CMOS 16 x 16-bit parallel multiplier accumulator capable of operating at 45ns clocked multiply-accumulate cycles. The 16-bit X and Y operands may be specified as either two’s complement or unsigned magnitude format. Additional inputs are provided for the accumul.

HMA510 Datasheet (160.14 KB)

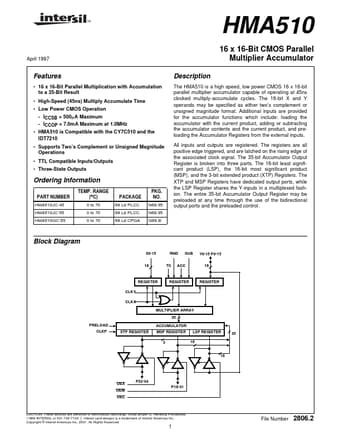

Preview of HMA510 PDF

Datasheet Details

Part number:

HMA510

Manufacturer:

Intersil Corporation

File Size:

160.14 KB

Description:

16 x 16-bit cmos parallel multiplier accumulator.
