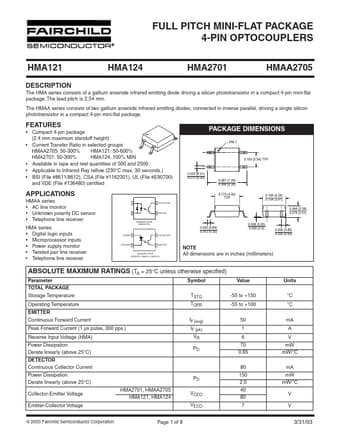

HMA2701 Datasheet, Optocouplers, Fairchild Semiconductor

HMA2701 Features

• Optocouplers
• Compact 4-pin package (2.4 mm maximum standoff height)
• Current Transfer Ratio in selected groups HMAA2705: 50-300% HMA121: 50-600% HMA2701: 50-300% HMA124: 100% MIN

PDF File Details

Part number:

HMA2701

Manufacturer:

Fairchild Semiconductor

File Size:

502.59kb

Download:

📄 Datasheet

Description:

Full pitch mini-flat package 4-pin optocouplers. The HMA series consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a compact 4-pin mini-flat p

HMA2701 Application

• Applications HMAA series
• AC line monitor
• Unknown polarity DC sensor
• Telephone line receiver HMA series
• Digit

TAGS

HMA2701

Fairchild Semiconductor
