HMA5101 16 x 16-Bit CMOS Parallel Multiplier Accumulator

The HMA510/883 is a high speed, low power CMOS 16 x 16-bit parallel multiplier accumulator capable of operating at 55ns clocked multiply-accumulate cycles. The 16-bit X and Y operands may be speciﬁed as either two’s complement or unsigned magnitude format. Additional inputs are provided for the accu.

HMA5101 Features

* This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1.

* 16 x 16-Bit Parallel Multiplication with Accumulation to a 35-Bit Result

* High-Speed (55ns) Multiply Accumulate Time

* Low Power CMOS Operation

HMA5101 Datasheet (180.59 KB)

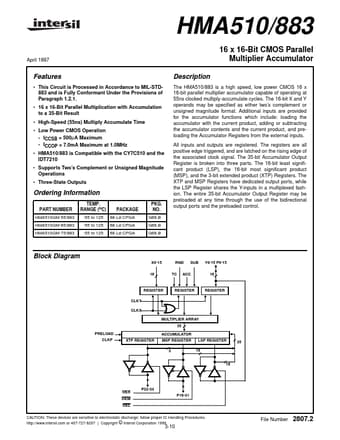

HMA5101 Datasheet Preview — Preview of HMA5101 PDF

Datasheet Details

Part number:

HMA5101

Manufacturer:

Intersil Corporation

File Size:

180.59 KB

Description:

16 x 16-bit cmos parallel multiplier accumulator.
