IRL610A - Advanced Power MOSFET

Product Overview

Fairchild Semiconductor

📥 Download Datasheet

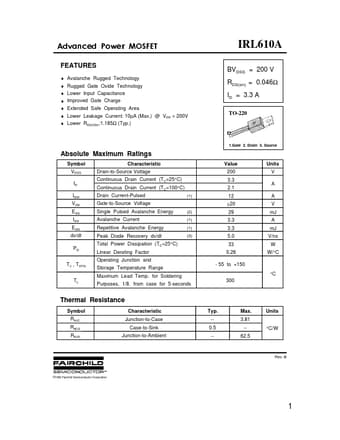

IRL610A Advanced Power MOSFET by Fairchild Semiconductor - Datasheet Preview — Datasheet preview – IRL610A

Datasheet Details

Part number	IRL610A
Manufacturer	Fairchild Semiconductor
File Size	239.52 KB
Description	Advanced Power MOSFET
Datasheet	IRL610A Datasheet
Additional preview pages of the IRL610A datasheet.

Product details

Features

Avalanche Rugged Technology.
Rugged Gate Oxide Technology.
Lower Input Capacitance.
Improved Gate Charge.
Extended Safe Operating Area.
Lower Leakage Current: 10µA (Max. ) @ VDS = 200V.
Lower RDS(ON):1.185Ω (Typ. ) 1 2 3 IRL610A BVDSS = 200 V RDS(on) = 0.046Ω ID = 3.3 A TO-220 1.Gate 2. Drain 3. Source Absolute Maximum Ratings Symbol VDSS ID IDM VGS EAS IAR EAR dv/dt PD TJ , TSTG TL Characteristic Drain-to-Source Voltage Continuous.
