ISL9V5036P3_F085 - N-Channel Ignition IGBT

Fairchild Semiconductor

ISL9V5036P3_F085 Description

ISL9V5036P3_F085 EcoSPARK® 500mJ,360,N-Channel Ignition IGBT August 2011 ISL9V5036P3_F085 EcoSPARK® 500mJ, 360V, N-Channel Ignition IGBT General De.
The ISL9V5036P3_F085 is the next generation IGBT that offer outstanding SCIS capability in the TO-220 plastic package.

ISL9V5036P3_F085 Features

* Industry Standard TO-220 package
* SCIS Energy = 500mJ at TJ = 25oC
* Logic Level Gate Drive
* Qualified to AEC Q101
* RoHS Compliant Package JEDEC TO-220AB ECG Symbol GATE COLLECTOR (FLANGE) Device Maximum Ratings TA = 25°C unless otherwise noted Symb

ISL9V5036P3_F085 Applications

* Automotive Ignition Coil Driver Circuits

📥 Download Datasheet

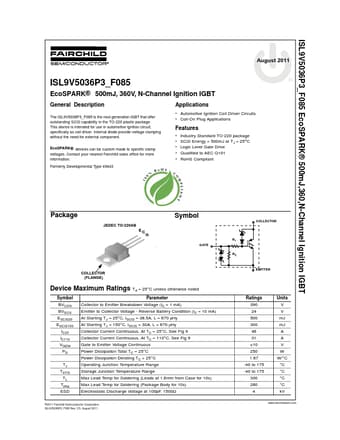

ISL9V5036P3_F085 Datasheet Preview — Preview of ISL9V5036P3_F085 PDF

Datasheet Details

Part number: ISL9V5036P3_F085
Manufacturer: Fairchild Semiconductor
File Size: 308.83 KB
Datasheet: ISL9V5036P3_F085-FairchildSemiconductor.pdf
Description: N-Channel Ignition IGBT
