KM4121 - 0.2mA/ Low Cost/ +2.7V & +5V/ 35MHz Rail-to-Rail Amplifiers

KM4121 Description

www.fairchildsemi.com KM4111/KM4121 0.2mA, Low Cost, +2.7V & +5V, 35MHz Rail-to-Rail Amplifiers .
The KM4111 (single) and KM4121 (single with disable) are ultra-low power, low cost, voltage feedback amplifiers.

KM4121 Applications

* I I I I I Normalized Magnitude (2dB/div) 0.1 Portable/battery-powered applications A/D buffer Active filters Signal conditioning Portable test instruments Non-Inverting Freq. Response Vs = +5V G=2 KM4111/KM4121 Packages SOT23-5 (KM4111) Out -Vs +In 1 2 + 5 +Vs - 1 10 100 Frequency (MHz)

📥 Download Datasheet

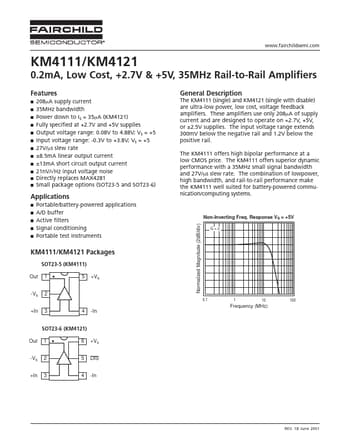

Preview of KM4121 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KM4121
Manufacturer
Fairchild Semiconductor
File Size
151.10 KB
Datasheet
KM4121_FairchildSemiconductor.pdf
Description
0.2mA/ Low Cost/ +2.7V & +5V/ 35MHz Rail-to-Rail Amplifiers
