NC7WP04, TinyLogic ULP Dual Inverter

www.DataSheet4U.com Preliminary NC7WP04 TinyLogic ULP Dual Inverter (Preliminary) September 2003 Revised March 2004 NC7WP04 TinyLogic ULP Dual I.
The NC7WP04 is a dual inverter from Fairchild’s Ultra Low Power (ULP) Series of TinyLogic.

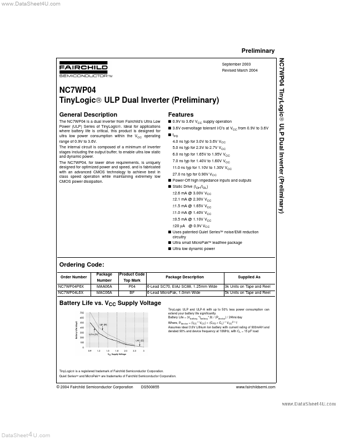

datasheet Preview Page 1 from Datasheet4u.com

NC7WP04_FairchildSemiconductor.pdf

NC7WP04 Datasheet Preview — Preview of NC7WP04 PDF

Datasheet Details

Part number:

NC7WP04

Manufacturer:

Fairchild Semiconductor

File Size:

325.05 KB

Description:

TinyLogic ULP Dual Inverter

Features

* s 0.9V to 3.6V VCC supply operation s 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V s tPD 4.0 ns typ for 3.0V to 3.6V VCC 5.0 ns typ for 2.3V to 2.7V VCC 6.0 ns typ for 1.65V to 1.95V VCC 7.0 ns typ for 1.40V to 1.60V VCC 11.0 ns typ for 1.10V to 1.30V VCC 27.0 ns typ for 0.90V VCC s Powe

Applications

* where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V. The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power. The NC7WP04, for lower
