NC7WB3306

TinyLogic UHS 2-Bit Low Power Bus Switch

NC7WB3306 Features

* s Space saving US8 surface mount package s MicroPak leadless package s Typical 3Ω switch resistance at 5.0V VCC s Minimal propagation delay through the switch s Power down high impedance input/output s Zero bounce in flow through mode. s TTL compatible active LOW control inputs s Control inputs are

NC7WB3306 General Description

The NC7WB3306 is a 2-bit ultra high-speed CMOS FET bus switch with TTL-compatible active LOW control inputs. The low On Resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a.

NC7WB3306 Datasheet (182.05 KB)

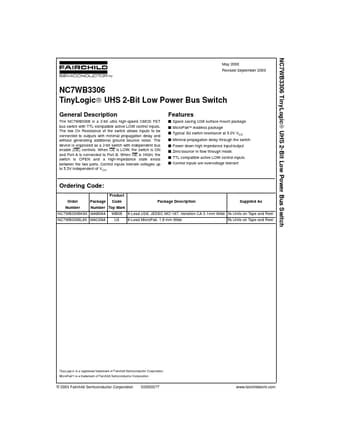

Preview of NC7WB3306 PDF

Datasheet Details

Part number:

NC7WB3306

Manufacturer:

Fairchild

File Size:

182.05 KB

Description:

Tinylogic uhs 2-bit low power bus switch.
NC7WB3306 TinyLogic UHS 2-Bit Low Power Bus Switch May 2000 Revised September 2003 NC7WB3306 TinyLogic UHS 2-Bit Low Power Bus Switch General Desc.
