NC7WP14

ULP Dual Inverter

NC7WP14 Features

* s 0.9V to 3.6V VCC supply operation s 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V s tPD 4.0 ns typ for 3.0V to 3.6V VCC 5.0 ns typ for 2.3V to 2.7V VCC 6.0 ns typ for 1.65V to 1.95V VCC 7.0 ns typ for 1.40V to 1.60V VCC 11.0 ns typ for 1.10V to 1.30V VCC 27.0 ns typ for 0.90V VCC s Powe

NC7WP14 General Description

The NC7WP14 is a dual inverter with Schmitt trigger inputs from Fairchild’s Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC . The internal ci.

NC7WP14 Datasheet (182.37 KB)

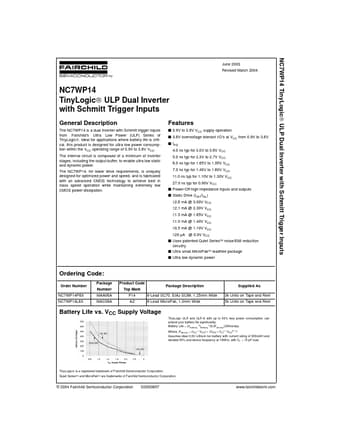

Preview of NC7WP14 PDF

Datasheet Details

Part number:

NC7WP14

Manufacturer:

Fairchild

File Size:

182.37 KB

Description:

Ulp dual inverter.
NC7WP14 TinyLogic ULP Dual Inverter with Schmitt Trigger Inputs June 2003 Revised March 2004 NC7WP14 TinyLogic ULP Dual Inverter with Schmitt Trig.
