NC7WP08 - TinyLogic ULP-A Dual 2-Input AND Gate

ON Semiconductor

Datasheet Details

Part number	NC7WP08
Manufacturer	ON Semiconductor ↗
File Size	514.12 KB
Description	TinyLogic ULP-A Dual 2-Input AND Gate
Datasheet	NC7WP08-ONSemiconductor.pdf

Designed for 0.9 V to 3.6 V VCC Operation.
2.2 ns tPD at 3.3 V (Typ).
Inputs/Outputs Over.
Voltage Tolerant up to 3.6 V.
IOFF Supports Partial Power Down Protection.
Source/Sink 2.6 mA at 3.3 V.
Available in US8 and MicroPak™ Packages.
These Devices are Pb.

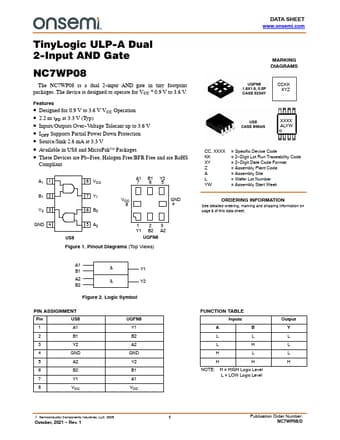

Free, Halogen Free/BFR Free and are RoHS Compliant A1 1 8 VCC A1 B1 Y2 765 B1 2 Y2 3 7 Y1 6 B2 VCC 8 GND 4 GND 4 US8 5 A2 123 Y1 B2 A2 UQFN8 Figure 1. P.
