NC7WB3125

2-Bit Low Power Bus Switch

NC7WB3125 Features

* O Space saving US8 surface mount package O MicroPak

* Pb-Free leadless package : O Typical 3 switch resistance at 5.0V VCC O Minimal propagation delay through the switch O Power down high impedance input/output O Zero bounce in flow through mode O TTL compatible active LOW control inputs O Contro

NC7WB3125 General Description

The NC7WB3125 is a 2-bit ultra high-speed CMOS FET bus switch with TTL-compatible active LOW control inputs. The low On Resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a.

NC7WB3125 Datasheet (214.89 KB)

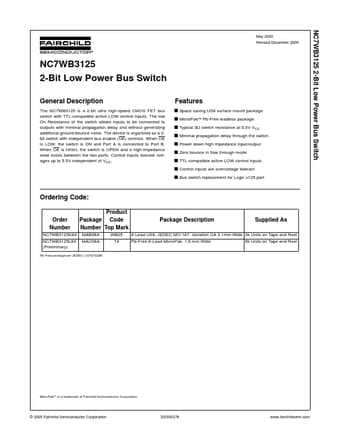

Preview of NC7WB3125 PDF

Datasheet Details

Part number:

NC7WB3125

Manufacturer:

Fairchild

File Size:

214.89 KB

Description:

2-bit low power bus switch.
