NC7WBD3306

UHS 2-Bit Low Power Bus Switch

NC7WBD3306 Features

* s Space saving US8 surface mount package s MicroPak leadless package s Typical 3Ω switch resistance at 5.0V VCC , VIN = 0V s Level shift facilitates 5V to 3.3V interfacing s Minimal propagation delay through the switch s Power down high impedance input/output s Zero bounce in flow through mode s TT

NC7WBD3306 General Description

The NC7WBD3306 is a 2-bit ultra high-speed CMOS FET bus switch with enhanced level shifting circuitry and with TTL-compatible active LOW control inputs. The low On Resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional groun.

NC7WBD3306 Datasheet (196.68 KB)

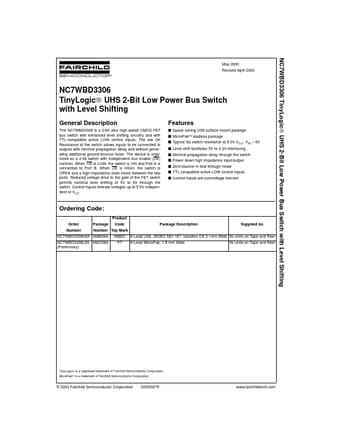

Preview of NC7WBD3306 PDF

Datasheet Details

Part number:

NC7WBD3306

Manufacturer:

Fairchild

File Size:

196.68 KB

Description:

Uhs 2-bit low power bus switch.
NC7WBD3306 TinyLogic UHS 2-Bit Low Power Bus Switch with Level Shifting May 2000 Revised April 2003 NC7WBD3306 TinyLogic UHS 2-Bit Low Power Bus S.
