RFP15N05 N-Channel Power MOSFET

RFP15N05L, RFP15N06L Data Sheet January 2002 15A, 50V and 60V, 0.140 Ohm, Logic Level N-Channel Power MOSFETs These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA0522..

RFP15N05 Features

* 15A, 50V and 60V

* rDS(ON) = 0.140Ω

* Design Optimized for 5V Gate Drives

* Can be Driven from QMOS, NMOS, TTL Circuits

* Compatible with Automotive Drive Requirements

* SOA is Power Dissipation Limited

* Nanosecond Switching Speeds

RFP15N05 Datasheet (354.05 KB)

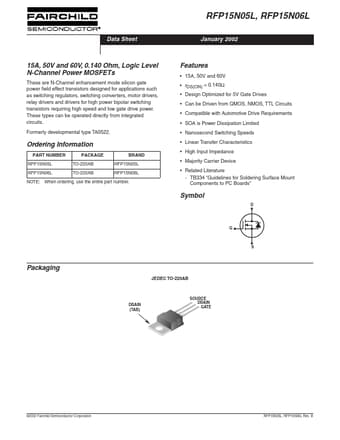

RFP15N05 Datasheet Preview — Preview of RFP15N05 PDF

Datasheet Details

Part number:

RFP15N05

Manufacturer:

Fairchild Semiconductor

File Size:

354.05 KB

Description:

N-channel power mosfet.
